Creating Steps from a Wall Pattern

Here's a trick you can try when you need steps but do not have an image of steps to work with. The technique uses a wall image with a capstone and a slight shadow cast by the capstone. You will find many of these in the Content Explorer >> Paver Tab >> Wall Patterns. In this example I am using a Techo-bloc wall.

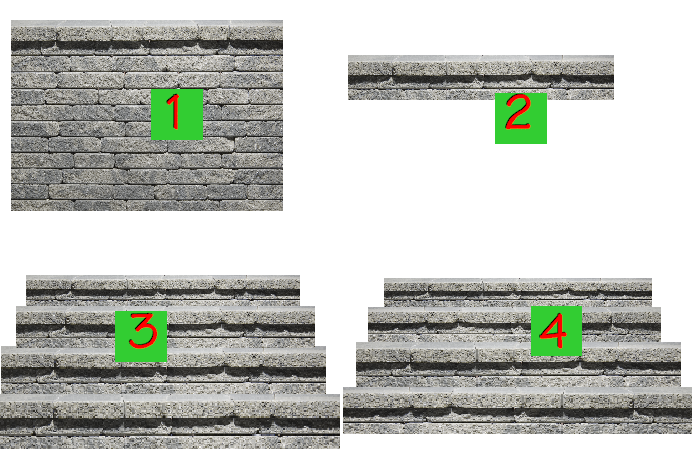

1. Pull the wall image from the Content Explorer to your project.


2. Using the Rectangle Area tool, drag a rectangle around the capstone and the top two courses of the wall.  When you release the rectangle you will get a popup, select Create New Object.  This will create a slice of wall as shown in #2.  Right click on the  slice and select Duplicate, in this example duplicated 3 times to create a total of 4 steps.


3. Stack the steps one over the next and make the next level down a little wider and taller so they appear to taper and have perspective.


4. A final touch is to use the Flip Horizontal tool from the toolbar and flip every other step.  This technique will alternate the steps so the do not look rubber stamped.


​

      If you build the steps on a solid white background, you can also save the set of steps into your library as a permanent object. Also, using the image tab you can change the coloration of the pattern, it is a good idea to do this prior to starting step #2.
