Importing DWG Files with Color

Importing DWG Files with Color

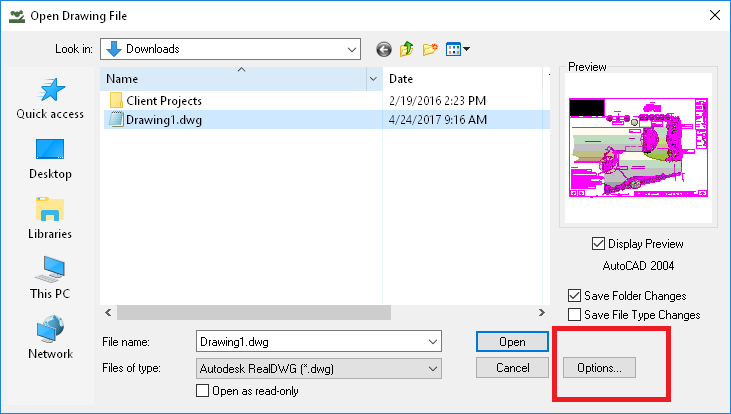

By default when you import AutoCAD DWG files the lines will appear in a dark gray color rather than the original drawing color. To retain the original colors. Go to FILE >> OPEN >> Change the Files of Type to AutoDesk RealDWG, select your DWG file and click OPTIONS... button.

Importing DWG Files with Color


On the Options window, check Keep Color.
Importing DWG Files with Color
