Drawing Steps in planner

An easy technique to draw steps is to use the Stairs tool.

Go to DRAW >> MISCELLANEOUS >> STAIRS.

This tool will allow you to change the line type (Line, Polyline, Semi-circle, Spline Curve or Fitted Curve)

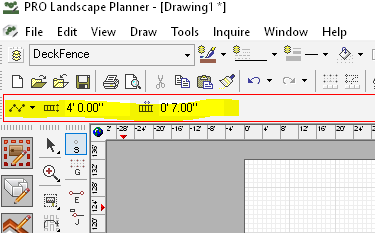

In the Edit Bar, set the tread width and length and quickly plot out your stairway.
